Watchcat

Watchcat - Network watchdog utility

"Watchcat is a ping-watchdog utility that allows you to set up rules for when a ping to a particular host fails."

The following modes of operation are available
- Ping Reboot: reboot the OpenWrt device if a ping to a specific host fails
- Restart Interface: restart a network interface if a ping to a host over that interface fails
- Periodic Reboot: reboot at a set period of time, such as every 24h.

Introduction

Watchcat is a ping-watchdog utility that allows you to set up rules for when a ping to a particular host fails.

The following modes of operation are available:

• Ping Reboot : reboot the OpenWrt device if a ping to a specific host fails.
• Restart Interface : restart a network interface if a ping to a host over that interface fails.
• Periodic Reboot : reboot at a set period of time, such as every 24h.

Parameters

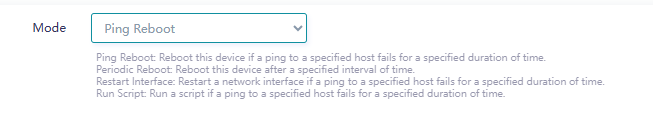

1. mode - the mode this watchcat instance is in.






   • Ping_reboot
   • Periodic_reboot
   • Restart_interface
   • Run_script

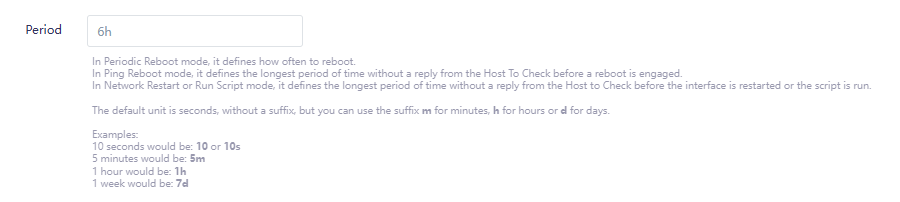

2. Period - the way this parameter is used depends on the mode watchcat is in.




   • Periodic Reboot : the interval of time at which to perform the reboot, such as every 24h
   • Ping Reboot : the longest interval of time without a successful ping before the rule is activated
   • Restart Interface : the longest interval of time without a successful ping before the rule is activated
     (restarts only the interface)

3. Host to check - In Ping Reboot and Restart Interface modes, IP address or the host name to ping

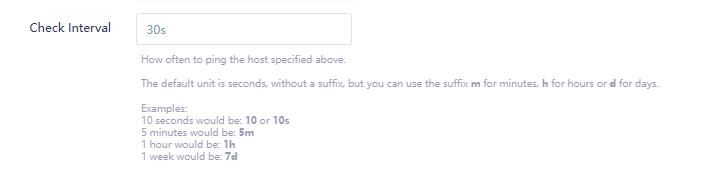

4. Check Interval - The time duration to ping the host






   • every 10 seconds would be: 10 or 10s
   • every 5 minutes would be: 5m
   • every 1 hour would be: 1h
   • every week would be: 7d

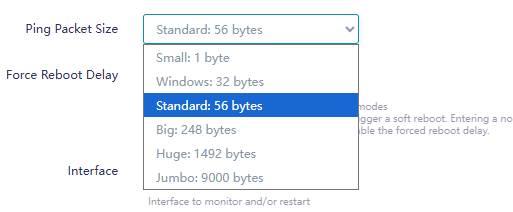

5. Ping Packet Size - The size of packet to use for pings.






   • small - 1 byte
   • windows - 32 bytes
   • standard - 56 bytes
   • big - 248 bytes
   • huge - 1492 bytes
   • jumbo - 9000 bytes

6. Force Reboot Delay - In Ping Reboot and Periodic Reboot modes, the amount of time to try a graceful reboot before a sysreq reboot is activated as a fail safe.

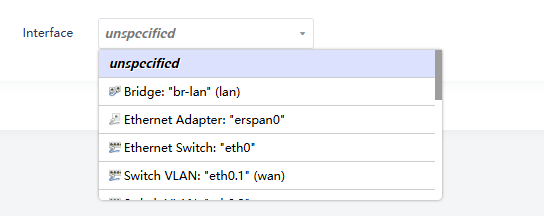

7. Interface -  The interface to ping via, and also, in Restart Interface mode the one to restart. If unset, it will use the default route's interface
