General information
| Download technical specification | Technical Specification |
The AG-1629 is a quad-core, highly effective ARM-based compact-size multipurpose industrial computer with IoT gateway functionality. It is designed for edge computing. It supports of Linux Debian. The computer has a built-in independent whatchdog and a USB interface for debugging.
Model Selection
Atreyo manufactures several versions of the AG-1629 with respect to components and modules used in it.
| AG-1629 |
Memory | Hardware Options | More information |
||||||
| eMMC |
RAM |
Cellular Network | GNSS |
WiFi | BT |
||||
| GB |
GB |
GPRS | 3G | 4G LTE | |||||
| AG-1629 | 8 | 512 | Without cellular | ||||||
| AG-1629-LT-EU | 8 | 512 | √ | √ | √ | For India and EU | |||
| AG-1629-LT-EU-WL3 | 8 | 512 | √ | √ | √ | √ | For India and EU | ||
| AG-1629-LT-GL | 8 | 512 | √ | √ | √ | √ | Global model | ||
| AG-1629-LT-GL-WL3 | 8 | 512 | √ | √ | √ | √ | √ | Global model | |
| AG-1629-LT-EU-BT1 | 8 | 512 | √ | √ | √ | √ | For India and EU | ||
| AG-1629-LT-GL-BT1 | 8 | 512 | √ | √ | √ | √ | √ | Global model | |
Hardware
The gateway housing is made of anodized aluminum. There are heat sink fins on top. The gate heats up during operation and this is normal.

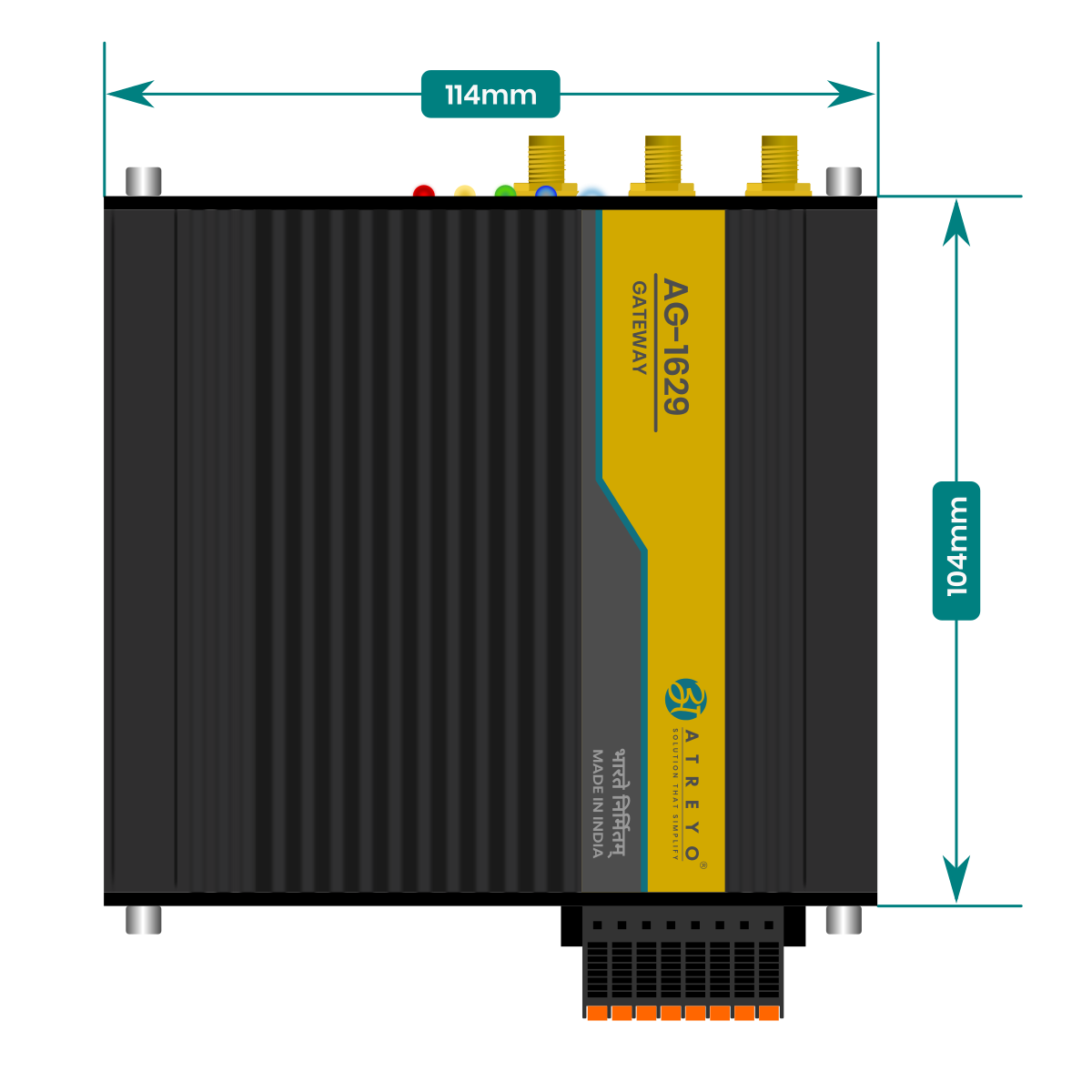

Side dimensions
Panel view
Below is a view of the top and bottom panels with the interfaces described.

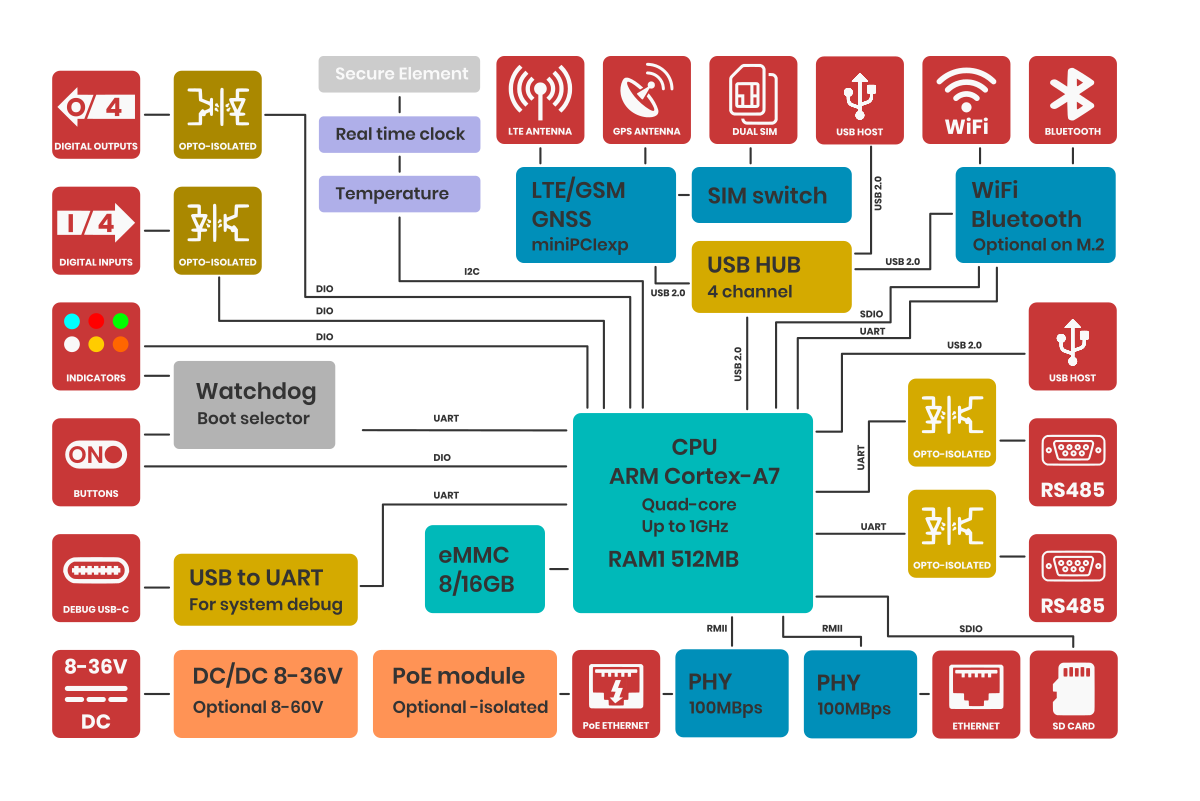

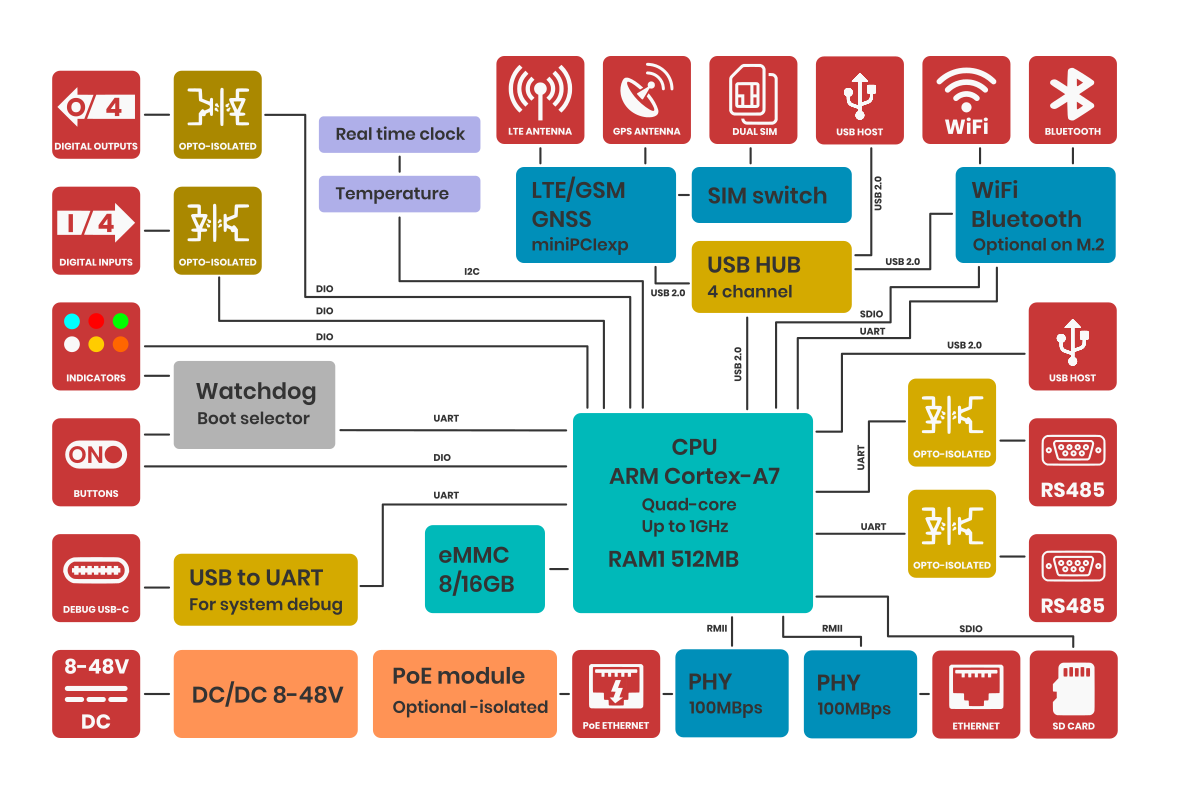

Block diagram
For a better understanding of how the computer works, we present a block diagram.
