Overview Page

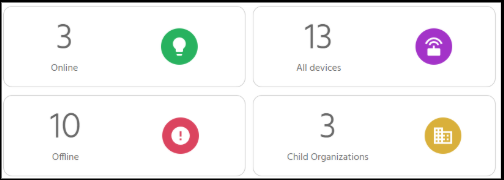

📊 Device & Organization Summary


The four cards display real-time data for your organization and its immediate child organizations (1 level below):

  • Online: Number of devices currently online.

  • Offline: Number of devices currently offline.

  • All Devices: Total number of devices registered under your organization and its direct child organizations.

  • Child Organizations: The number of child organizations created under your organization.

Example:
If a Level 1 organization has 3 direct children (Level 2), it will display 3 under Child Organizations.

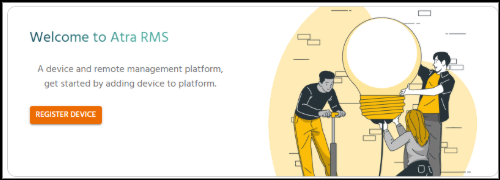

🎉 Welcome Card & Key Action


The card on the right provides a welcome message and a quick action button:

  • Welcome to Atra RMS: A brief introduction to the device and remote management platform.

  • REGISTER DEVICE (Orange Button): Click this button to navigate directly to the page for registering a new device on the platform.

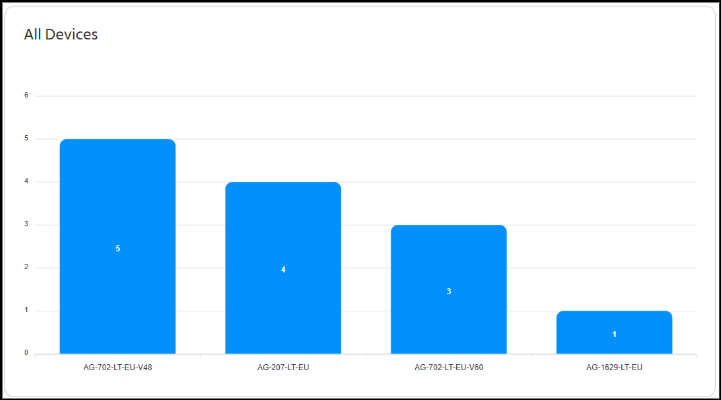

📊 All Devices (Bar Chart)


The bar chart on the left displays the total count of all registered devices, grouped by model name (e.g., AG-702-LT-EU-V48, AG-207-LT-EU).

  • Each bar represents a unique device model.

  • The number above each bar indicates the total count of that model currently registered under your organization and its direct child organizations (e.g., 5 for AG-702-LT-EU-V48).

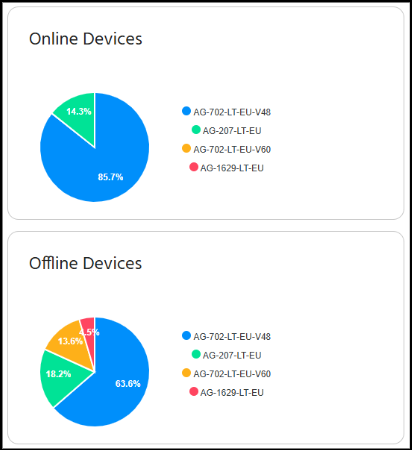

🥧 Online and Offline Devices (Pie Charts)


The pie charts on the right break down the overall device status into Online and Offline categories, showing how each device model contributes to these statuses.

  • Online Devices (Top Pie Chart): Displays the percentage of all currently online devices belonging to each registered model.
    Example: 85.7% of all online devices are of the model AG-702-LT-EU-V48.

  • Offline Devices (Bottom Pie Chart): Displays the percentage of all currently offline devices belonging to each registered model.
    Example: 63.6% of all offline devices are of the model AG-702-LT-EU-V48.

🗺️ Map Functionality


The map displays the physical locations of devices, represented by icons.

  • Location Source:
    Devices are shown on the map only if:

    • The location monitoring service is active on the device and it can fetch a GPS location, or

    • The device’s location has been set manually.

  • Device Status:

    • A gateway with a Wi-Fi icon and a green dot indicates the device is Online.

    • A gateway with a warning icon indicates the device is Offline.

  • Device Information:
    Hover over a gateway icon (pin) on the map to view its Serial Number.

🧭 Map Navigation

  • Zoom Controls (+ / -): Use the plus (+) and minus (-) icons at the top-left corner to zoom in and zoom out of the map area.

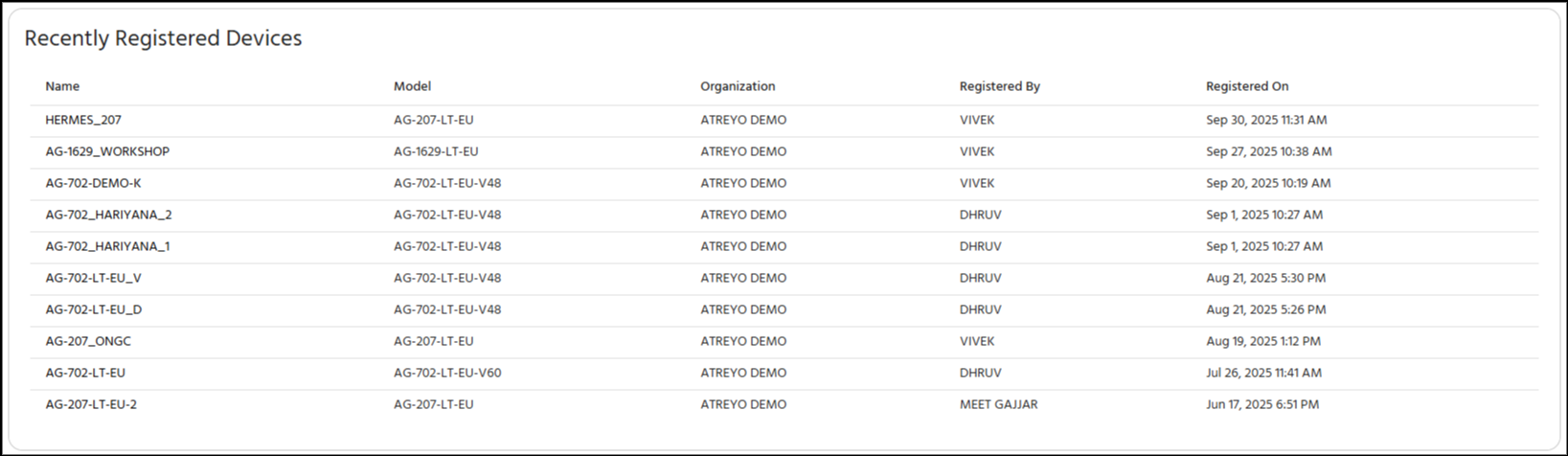

🆕 Recently Registered Devices


The Recently Registered Devices table provides a quick overview of the last 10 devices registered under your organization and its child organizations.

📋 Device Details

The table displays five key details for each recently registered device:

  • Name: The unique name assigned to the device (e.g., HERMES_207).

  • Model: The model name of the device (e.g., AG-207-LT-EU).

  • Organization: The organization to which the device is currently assigned (e.g., ATREYO DEMO).

  • Registered By: The user who registered the device (e.g., VIVEK, DHRUV).

  • Registered On: The date and time when the device was added to Atra-RMS (e.g., Sep 30, 2025, 11:31 AM).

⚙️ Key Action

  • View Device Profile: Click on a device’s Name in the list to navigate to its detailed profile page.

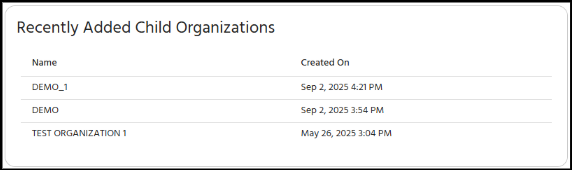

🏢 Recently Added Child Organizations


The Recently Added Child Organizations list provides a quick summary of the last 5 child organizations created under your organization.

📋 Organization Details

The list displays the following key information for each organization:

  • Name: The name of the recently created child organization (e.g., DEMO_1, TEST ORGANIZATION 1).

  • Created On: The date and time when the organization was created.

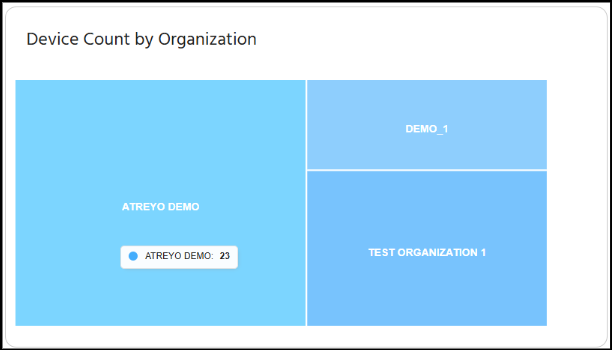

🧭 Device Count by Organization (Treemap)


The Device Count by Organization treemap visually represents the distribution of devices across your current organization and its direct child organizations.

🎯 Purpose

The treemap uses the size of each rectangular area to represent the relative number of devices within each organization.

  • Larger rectangles indicate a higher number of registered devices.

📊 Data Display

  • Organization Area: Each rectangle represents a single organization (e.g., ATREYO DEMO, DEMO_1, TEST ORGANIZATION 1).

  • Device Count: Hover over an organization’s area (e.g., the tooltip for ATREYO DEMO) to view the exact number of devices registered under that organization.

  • Important Note: The number shown represents only the devices registered to that specific organization — it does not include devices from its child organizations. Each child organization has its own separate area and count within the treemap.
