View VPN Tunnels

Organization (1).png

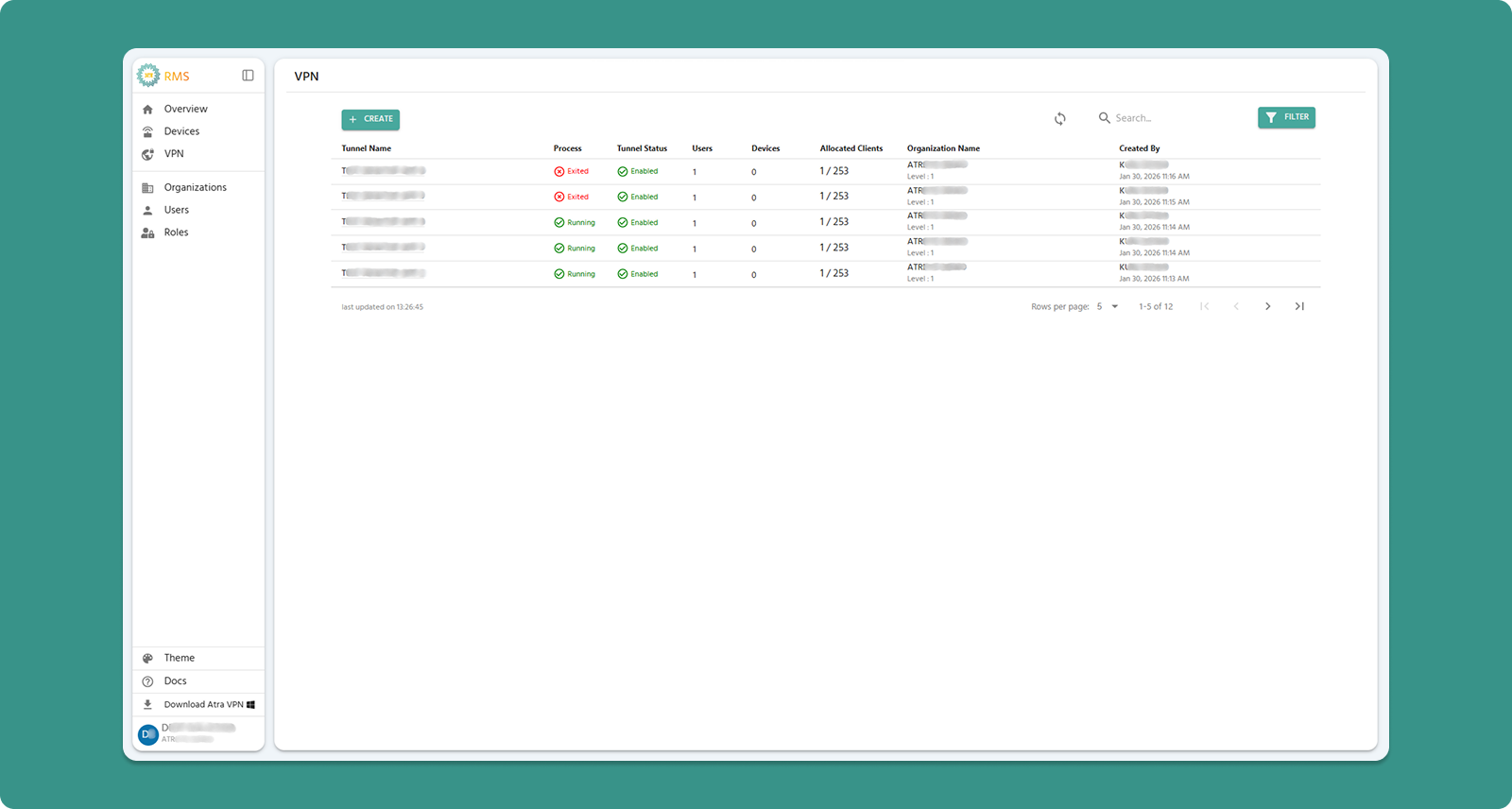

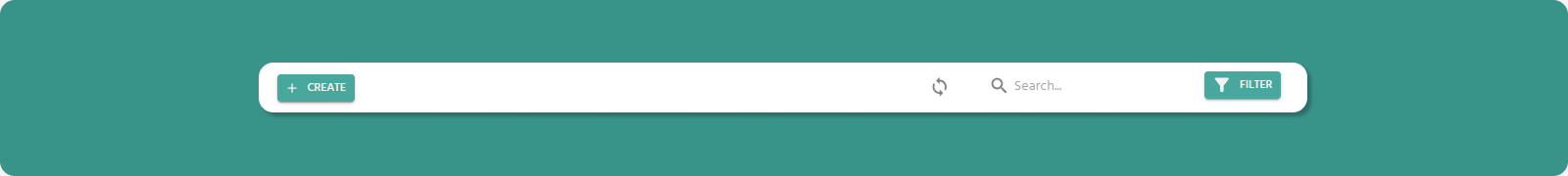

Interface Actions (Top Bar)


Action

Location

Purpose

+CREATE Button

Primary action area (Left)

Click to navigate to the VPN tunnel creation form and establish a new tunnel.

Refresh Button

Primary action area(Right)

Manually update tunnel list (also auto-refreshes every 5 seconds)

Search Bar

Search area(Right)

Filter by tunnel name, organization or creator

Filter

Primary action area (Right)

Filter by Creator,Organization Name and Process Status(Running/Exited)

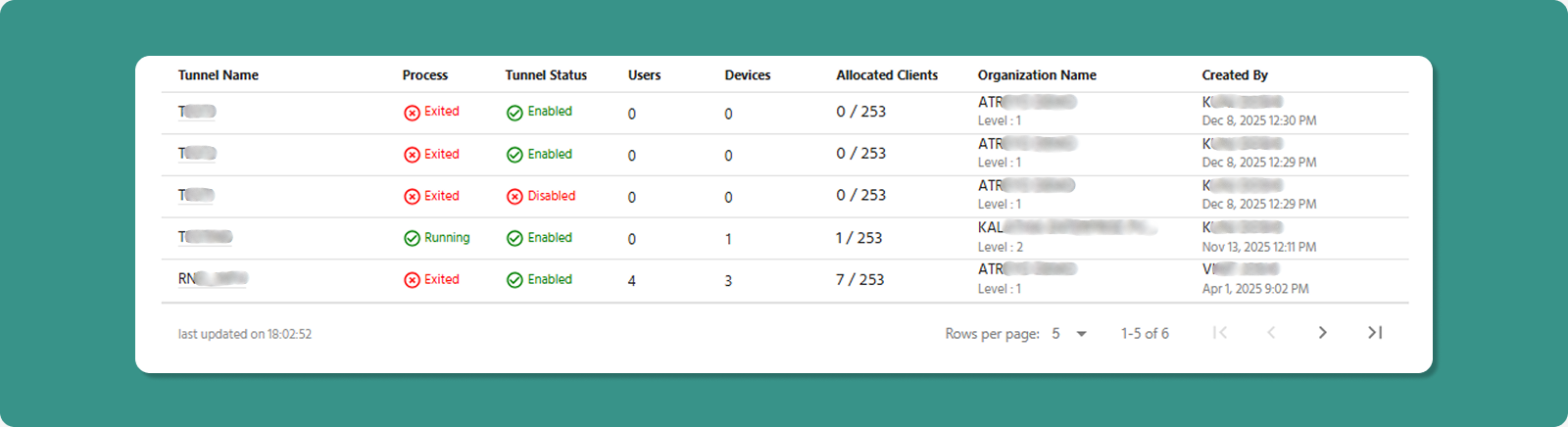

Column Definitions



Column

Description

Values

Tunnel Name

Custom name assigned during creation (click to open VPN Tunnel Overview page)

Production_Tunnel, Office_VPN

Process

Indicates the operational state of the

VPN server process.

Running, Exited

Tunnel Status

Management/activity state

Enabled, Disabled

Users

Count of users allocated to tunnel

10

Devices

Count of devices allocated to tunnel

5

Allocated Clients

Total users + devices in tunnel
(Max:253 Clients allowed)

15

Organization Name & Level

name of the organization and its level under which the tunnel was created or assigned

ATREYO Level-1

Created By

Username who created tunnel

admin@company.com

Created At

Date/time of tunnel creation

Dec 28, 2025, 9:30 AM

Understanding VPN States

Process State

The Process indicates the VPN server operational state.

State

Meaning

User/Device Impact

Running

VPN tunnel is active

✅ Users and devices CAN connect securely
❌Users and devices CANNOT be added.

Exited

VPN tunnel is inactive

❌ Users and devices CANNOT connect.
✅Users and devices CAN be added.

Common Causes of "Exited":

  • Administrator manually stopped the process

  • Tunnel was disabled (automatically stops process)

  • Inactivity timeout (no connections for extended period)

  • Technical error or crash (rare)

💡 Troubleshooting: If process shows "Exited" unexpectedly, check Tunnel Status. If "Disabled", enable it. If "Enabled", manually start the process.

Tunnel Status

The Tunnel Status determines management capabilities.

Status

Meaning

What You Can Do

Enabled

Tunnel is active and fully manageable

✅ Start/Stop process
✅ Add/remove users/devices
✅ Edit tunnel name
✅ View tunnel details

Disabled

Tunnel is inactive and locked down

❌ Cannot start process
❌ Cannot add/remove users/devices
❌ Cannot edit tunnel
✅ Can view details
✅ Can delete tunnel

When to Disable:

  • Temporarily suspend VPN access without deleting tunnel

  • Maintenance period requiring no connections

  • Security incident requiring immediate access cutoff

  • Preparing tunnel for deletion

Effect of Disabling:

  • Process automatically stops (becomes "Exited")

  • All connected users/devices are disconnected

  • No new connections possible until re-enable

Auto-Refresh Feature

🔄 Automatic Update: The VPN tunnel table refreshes every 5 seconds to show real-time status.

Benefits:

  • Monitor process state changes automatically

  • See when users/devices connect or disconnect

  • Immediate visibility into tunnel health

Manual Override:

  • Click Refresh button for immediate update

Table Navigation

Control

Purpose

Options

Rows per page

Adjust visible tunnels

5, 10, 15, 20,25

Total Count

Display total tunnels

"Showing 1-5 of 25"

Page Navigation

Move between pages

Previous, Next, Last, First

What is Atra RMS VPN?
