Understanding Device Details & Status

The Device Detail Page is your comprehensive monitoring dashboard for individual devices. It provides system information, resource utilization, network connectivity details, and GPS location.

Accessing Device Detail Page

From Device List:

1. Navigate to Devices section

2. Locate target device in table

3. Click the device Name (underlined link)

4. Device Detail Page opens

---

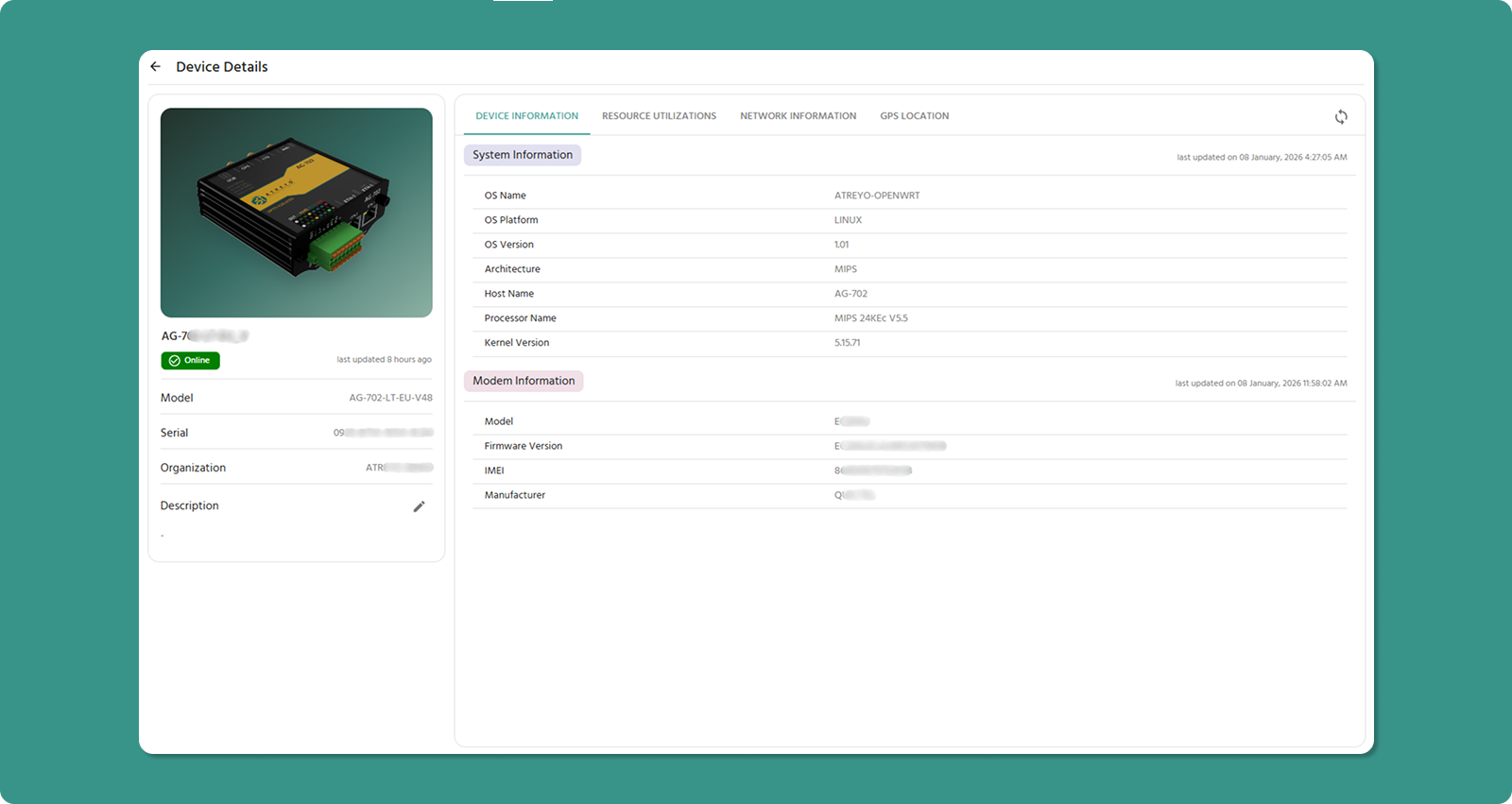

Page Layout Overview

The Device Detail Page uses a two-column layout:

Left Panel: Static device identity and metadata
Right Panel: Dynamic monitoring data across four tabs

---

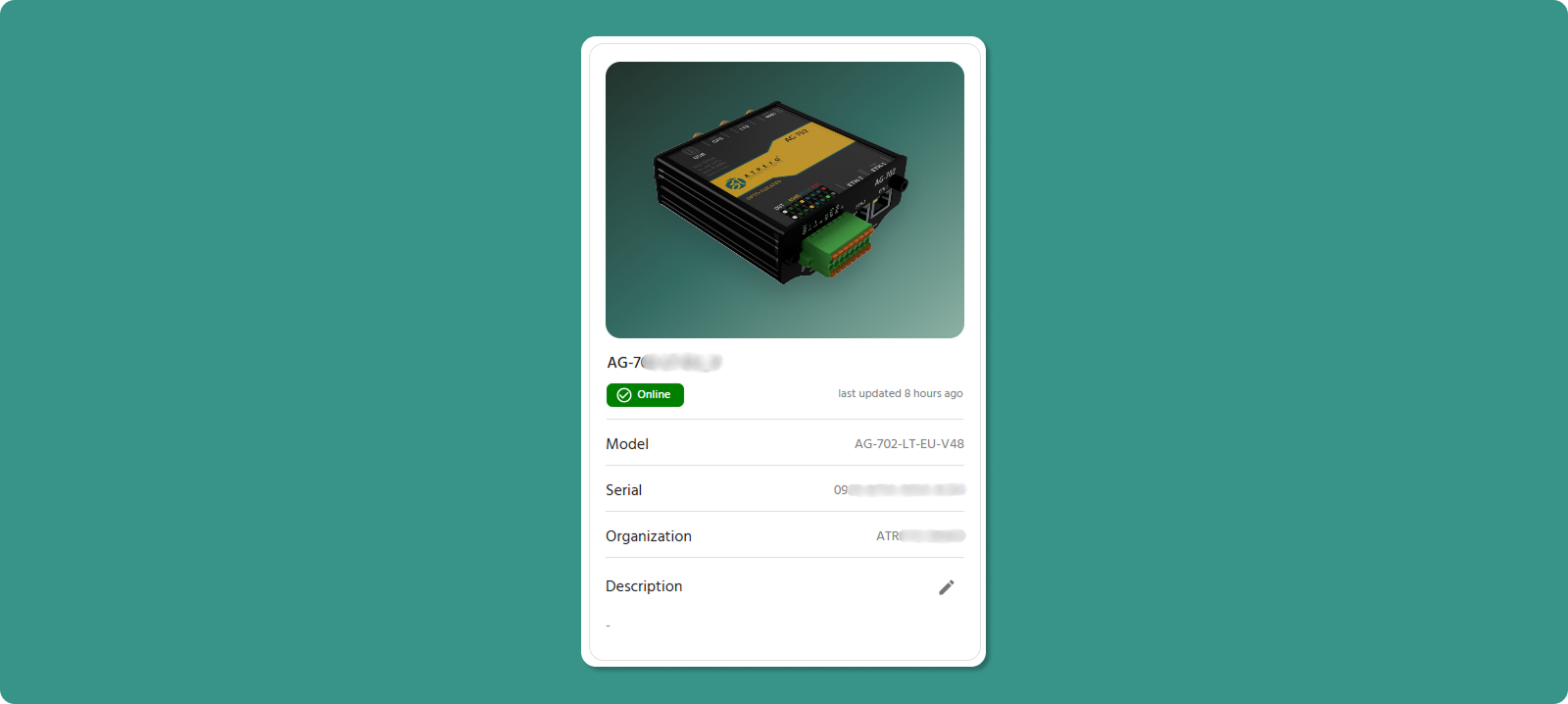

At-a-Glance Information (Left Panel)

The left panel displays the core identity and information for your device.

---

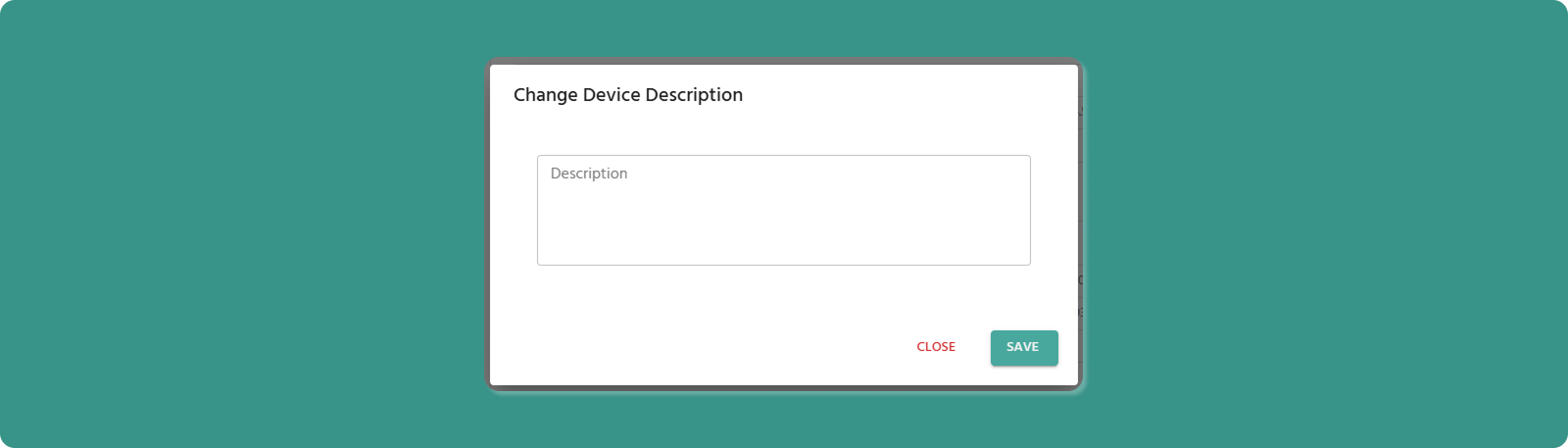

Editing Device Description

To Edit Description:

1. Click Edit button (✏️ pencil icon)

2. Edit Description dialog opens

3. Modify text (max 1000 characters)

4. Click SAVE to confirm changes

5. Click CLOSE to discard changes

Use Cases for Description Field:

• Physical location updates

• Maintenance schedules

• Contact information for site

• Network configuration notes

---

Detailed Monitoring Tabs (Right Panel)

The right panel contains four tabs for in-depth device monitoring. A Refresh button (🔄) in the top-right corner manually updates tab data.

Tab Navigation:

1. Device Information

2. Resource Utilization

3. Network Information

4. GPS Location

---

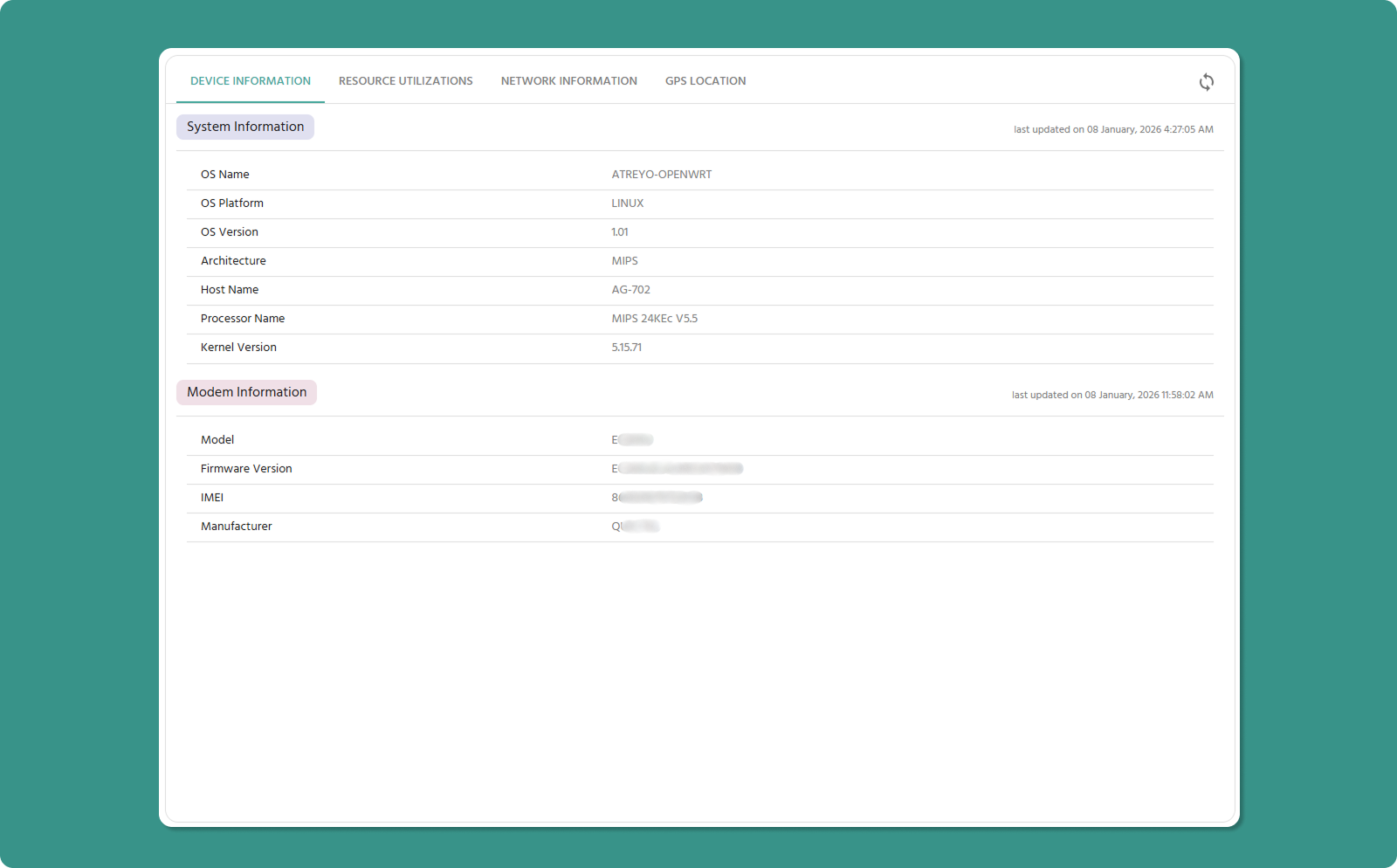

Tab 1: Device Information

This tab displays static technical specifications of your device's operating system, hardware, and cellular modem.

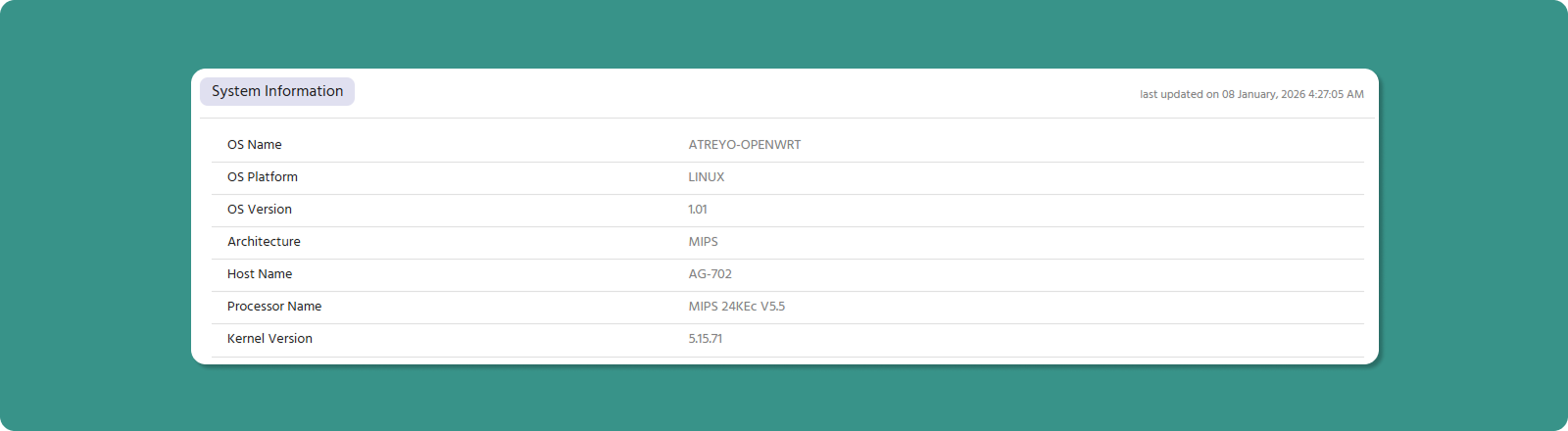

Section A: System Information

Core operating system and processor details.

---

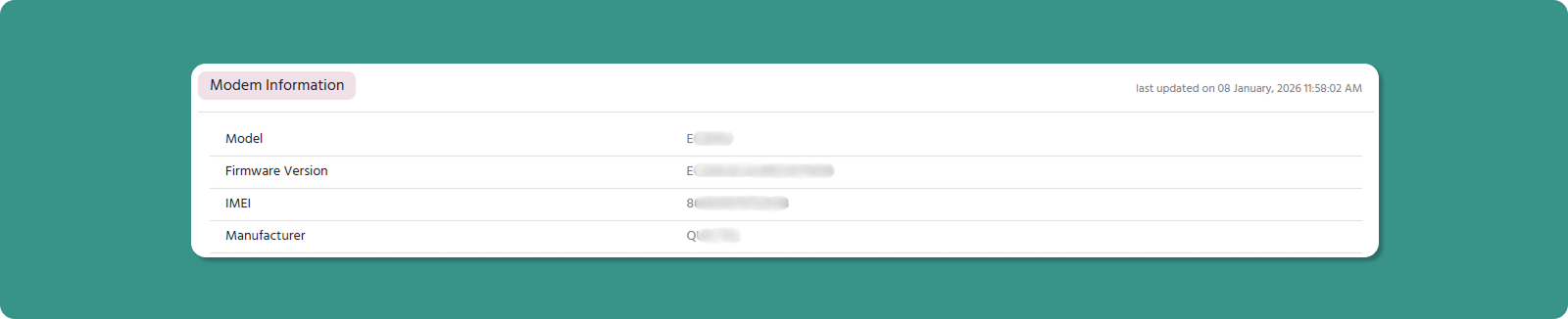

Section B: Modem Information

Cellular modem hardware and firmware specifications.

---

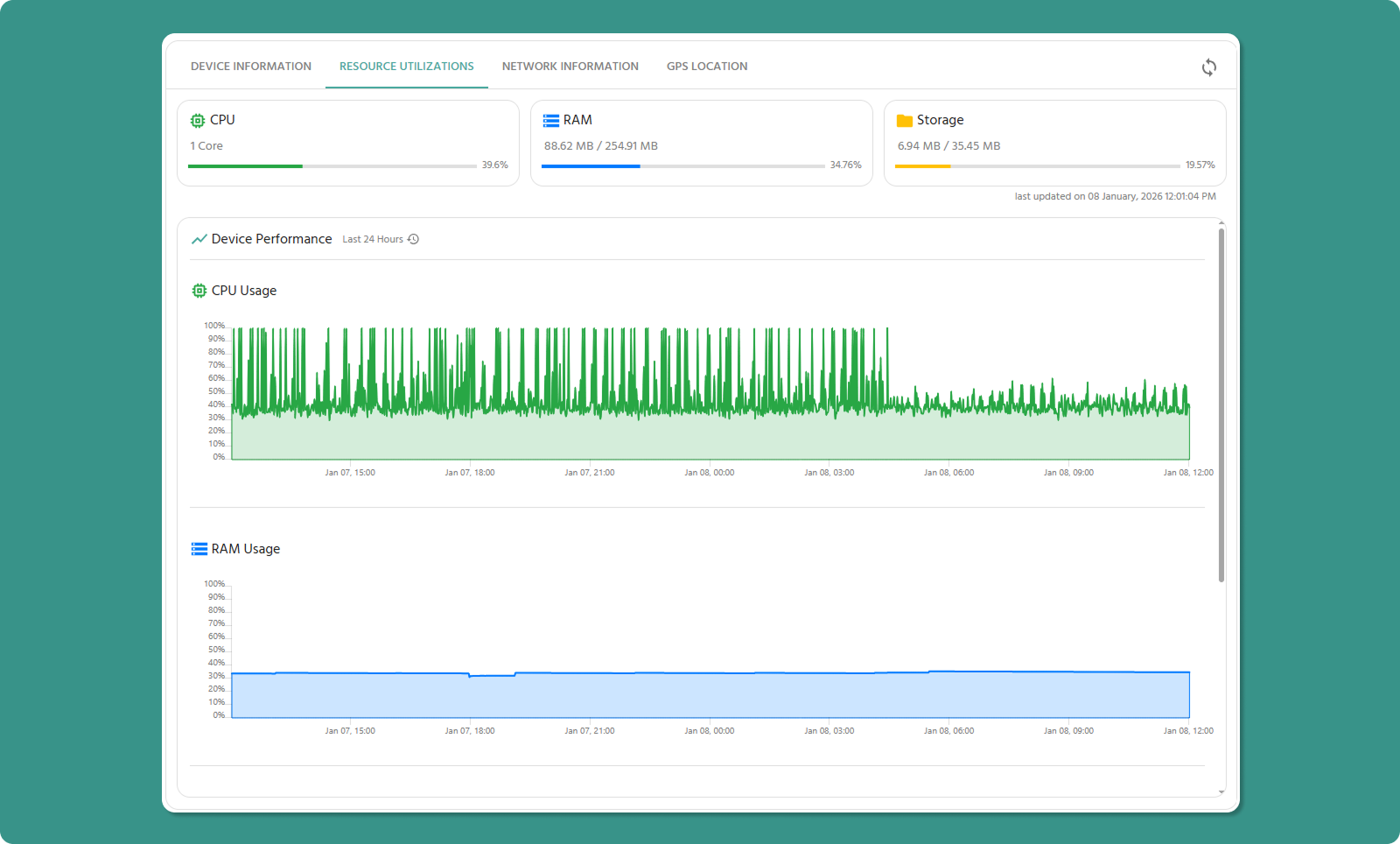

Tab 2: Resource Utilization

This tab is your device health dashboard, showing performance metrics and 24-hour historical trends.

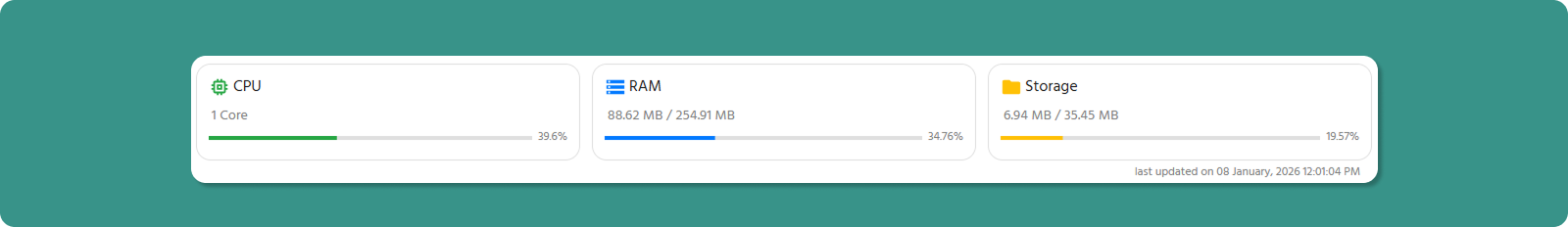

Metrics Cards

Three cards display current resource usage across critical components.

CPU Utilization

Displays:

• Number of CPU cores

• Current utilization percentage

Example:

CPU: 1 cores

Utilization: 45%

---

RAM Utilization

Displays:

• Total RAM capacity

• Currently used RAM

• Utilization percentage

Example:

RAM: 128 MB total

Used: 66 MB (51.5%)

💡 Memory Management: High RAM usage isn't always problematic. Modern systems use available RAM efficiently. Concern arises when usage stays at 90%+ for extended periods.

---

Storage Utilization

Displays:

• Total storage capacity

• Used storage space

• Utilization percentage

Example:

Storage: 512 MB total

Used: 270 MB (52.73%)

Common Storage Consumers:

• Logs

• Application data

---

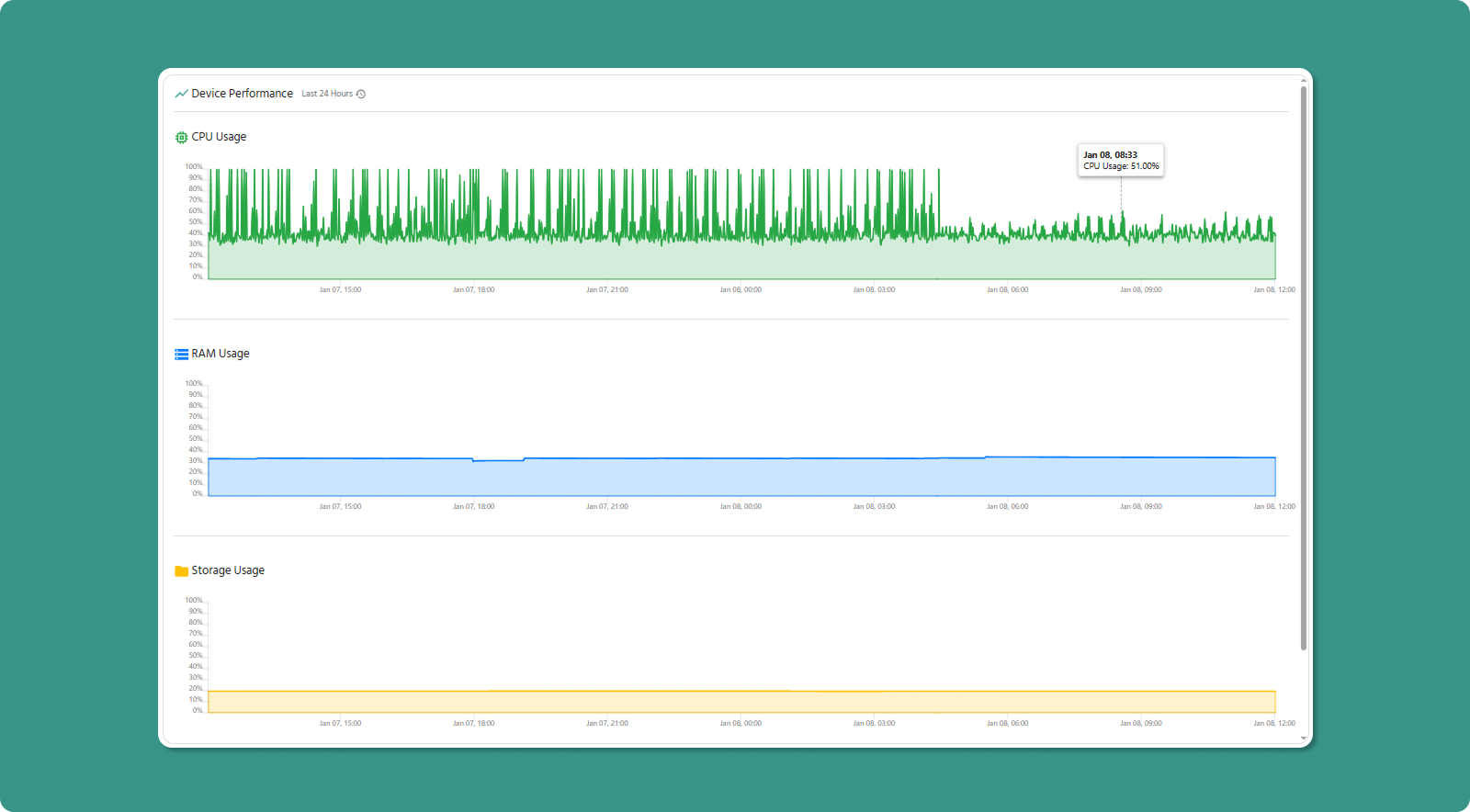

24-Hour Performance Graphs

Below the real-time cards, three line graphs display historical resource usage trends.

Graph Specifications:

• Time Range: Last 24 hours

• Data Points: Every 1 minute

• X-Axis: Time (hours)

• Y-Axis: Utilization percentage (0-100%)

Graph Types:

1. CPU Usage Graph (Green line)

2. RAM Usage Graph (Blue line)

3. Storage Usage Graph (Yellow line)

---

Analyzing Performance Trends

Normal Patterns:

CPU:

• Fluctuates based on workload

• Spikes during data transmission or processing

• Should return to baseline after tasks complete

RAM:

• Typically steady with gradual increases

• May step up when new processes start

• Rarely decreases significantly without restart

Storage:

• Gradually increases over time

• Sudden jumps indicate large file writes

• Decreases indicate log rotation or cleanup

---

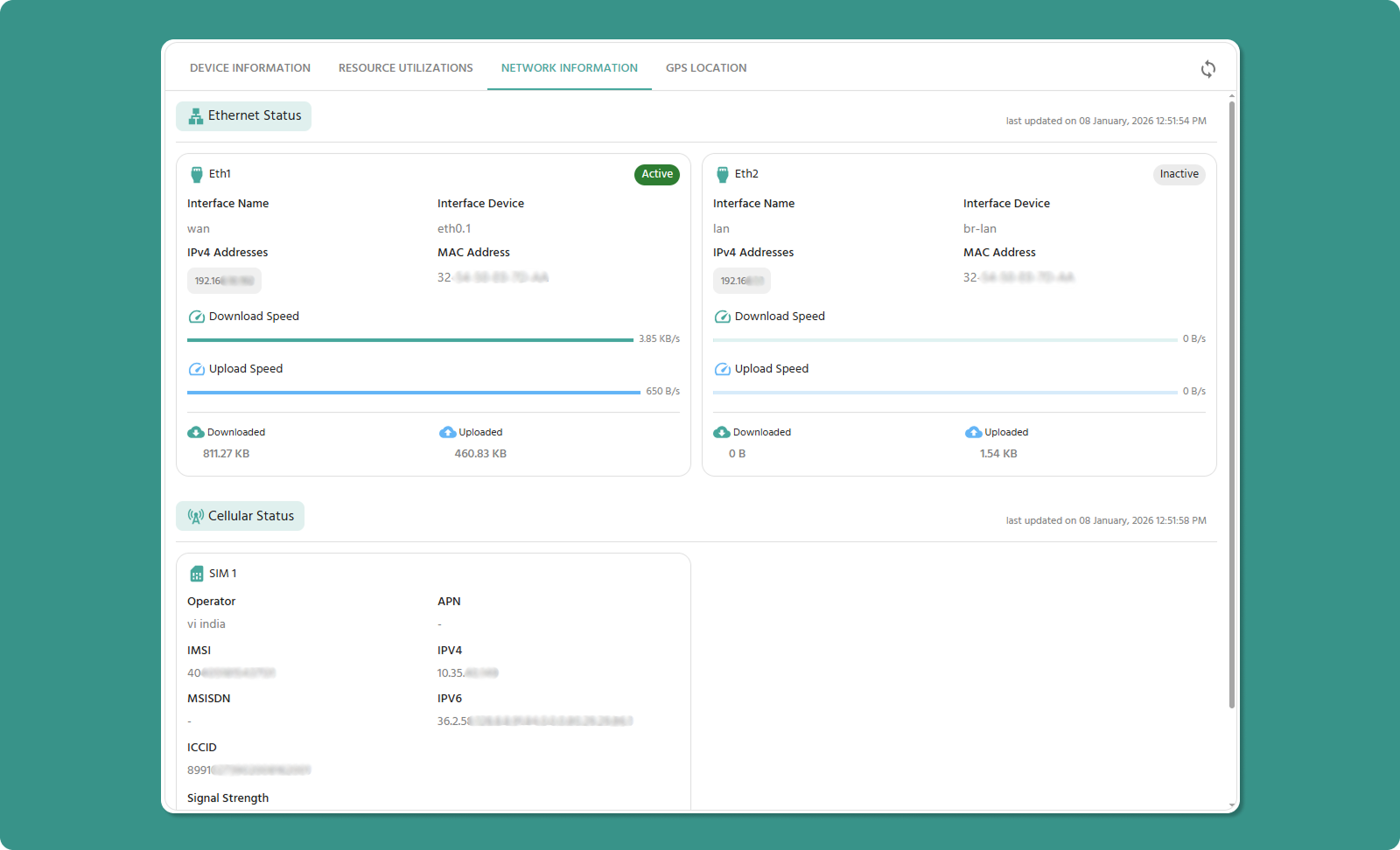

Tab 3: Network Information

This tab provides detailed connectivity information for both wired (Ethernet) and wireless (Cellular) network interfaces.

The tab is organized into two sections:

1. Ethernet Card Information

2. Cellular Card Information

---

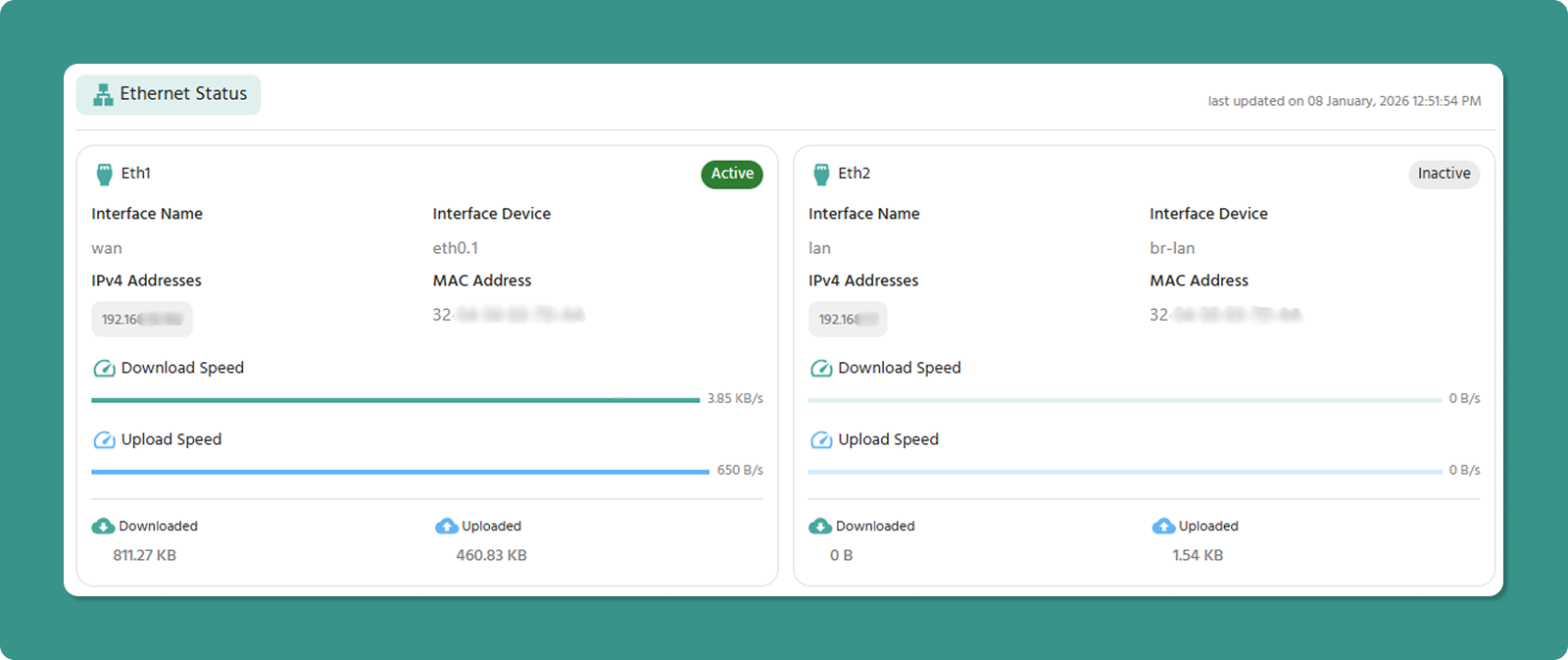

Section A: Ethernet Card Information

Wired network interface details for WAN (internet) and LAN (local network) connections.

Typical Display: Multiple ethernet interfaces may be shown (e.g., WAN, LAN, LAN2)

Ethernet Parameters

---

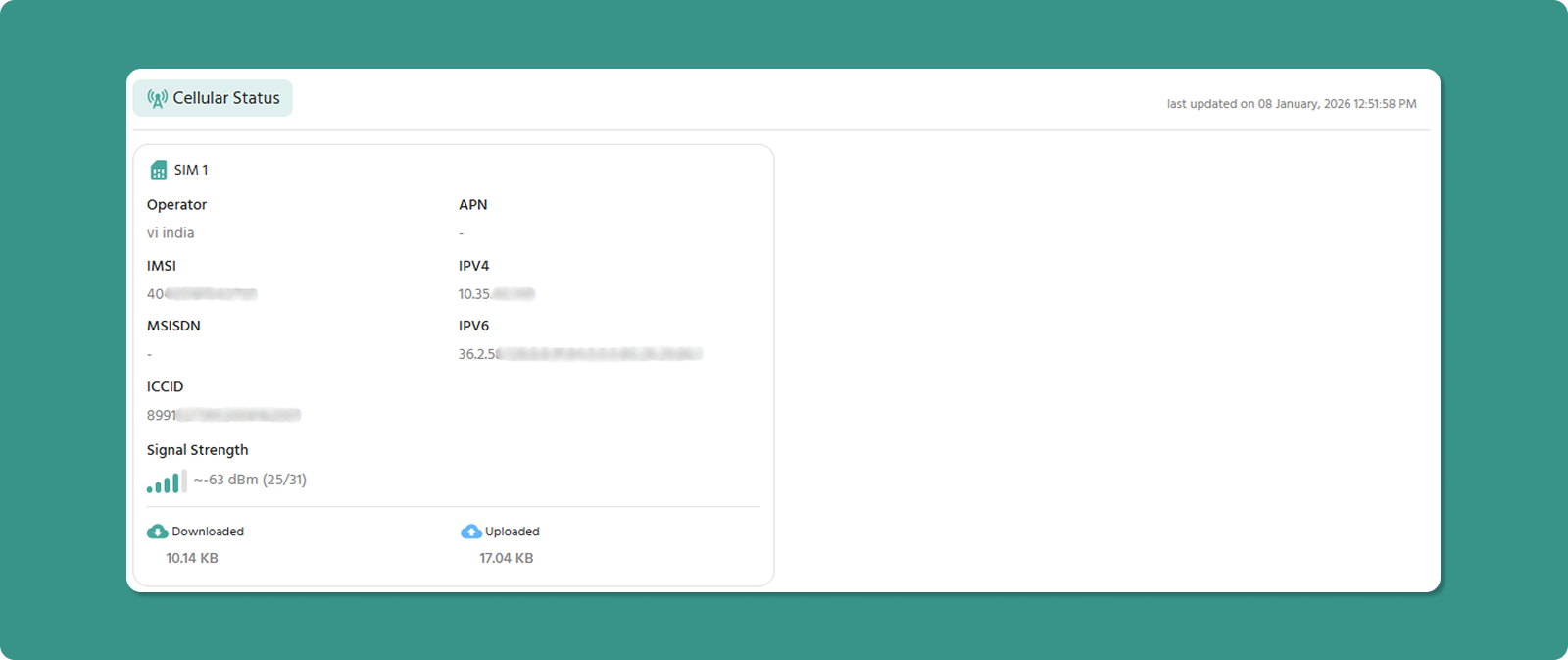

Section B: Cellular Card Information

Wireless cellular network connectivity details for mobile or backup internet connections.

Cellular Parameters

---

Interpreting Signal Strength

Signal strength is measured in dBm (decibel-milliwatts), a logarithmic scale where higher (less negative) values indicate stronger signals.

Signal Quality Scale:

Factors Affecting Signal:

• Distance from cell tower

• Physical obstructions (buildings, terrain)

• Weather conditions

• Network congestion

• Antenna quality and positioning

---

Cellular Troubleshooting Quick Guide

Problem: Poor Signal Strength (<-100 dBm)

Solutions:

1. Antenna Positioning: Relocate device or adjust external antenna

2. Alternative Location: Move device to higher elevation or near window

Problem: No Cellular Connection

Check:

• ✅ SIM card inserted correctly

• ✅ Carrier account is active and paid

• ✅ APN settings match carrier requirements

• ✅ Device is in carrier coverage area

• ✅ IMEI is not blocked by carrier

Problem: High Data Usage

Investigate:

• Check Downloaded/Uploaded Data totals

• Review application data transmission settings

• Confirm data is being sent via cellular (not ethernet)

• Look for unauthorized usage or malware

---

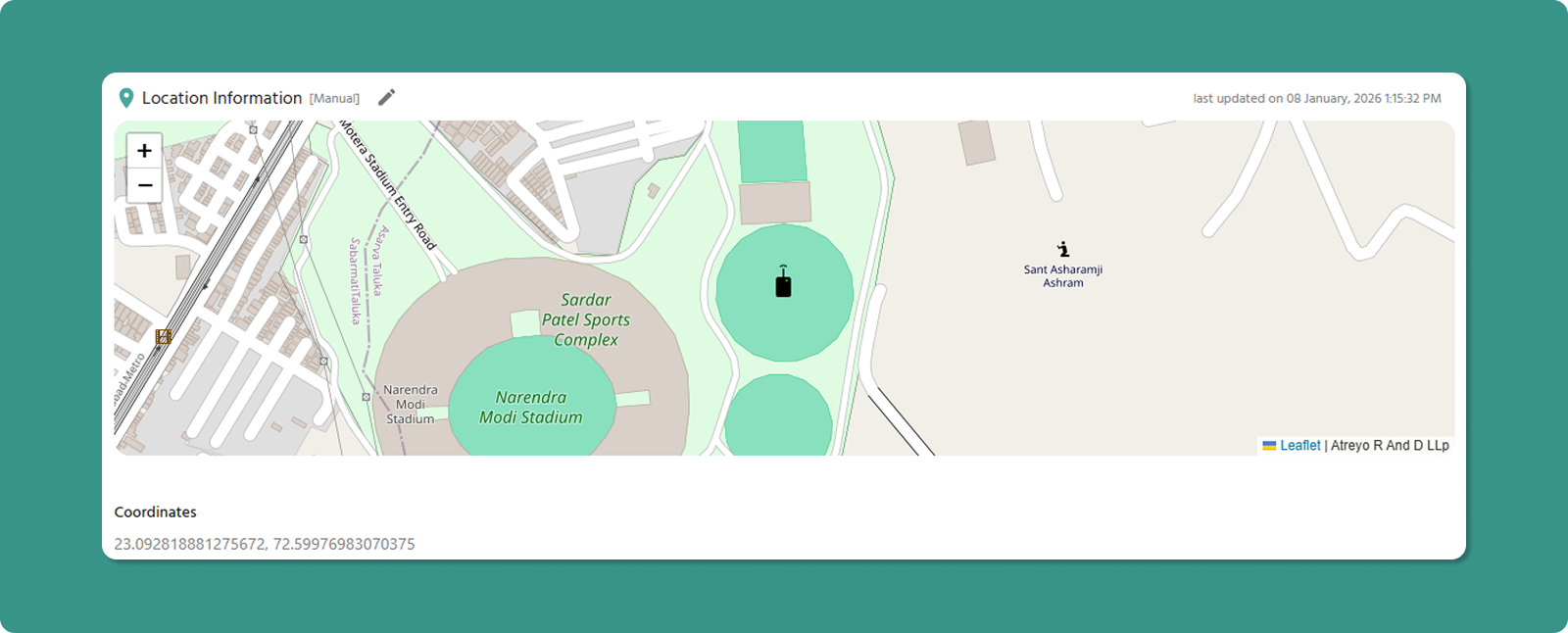

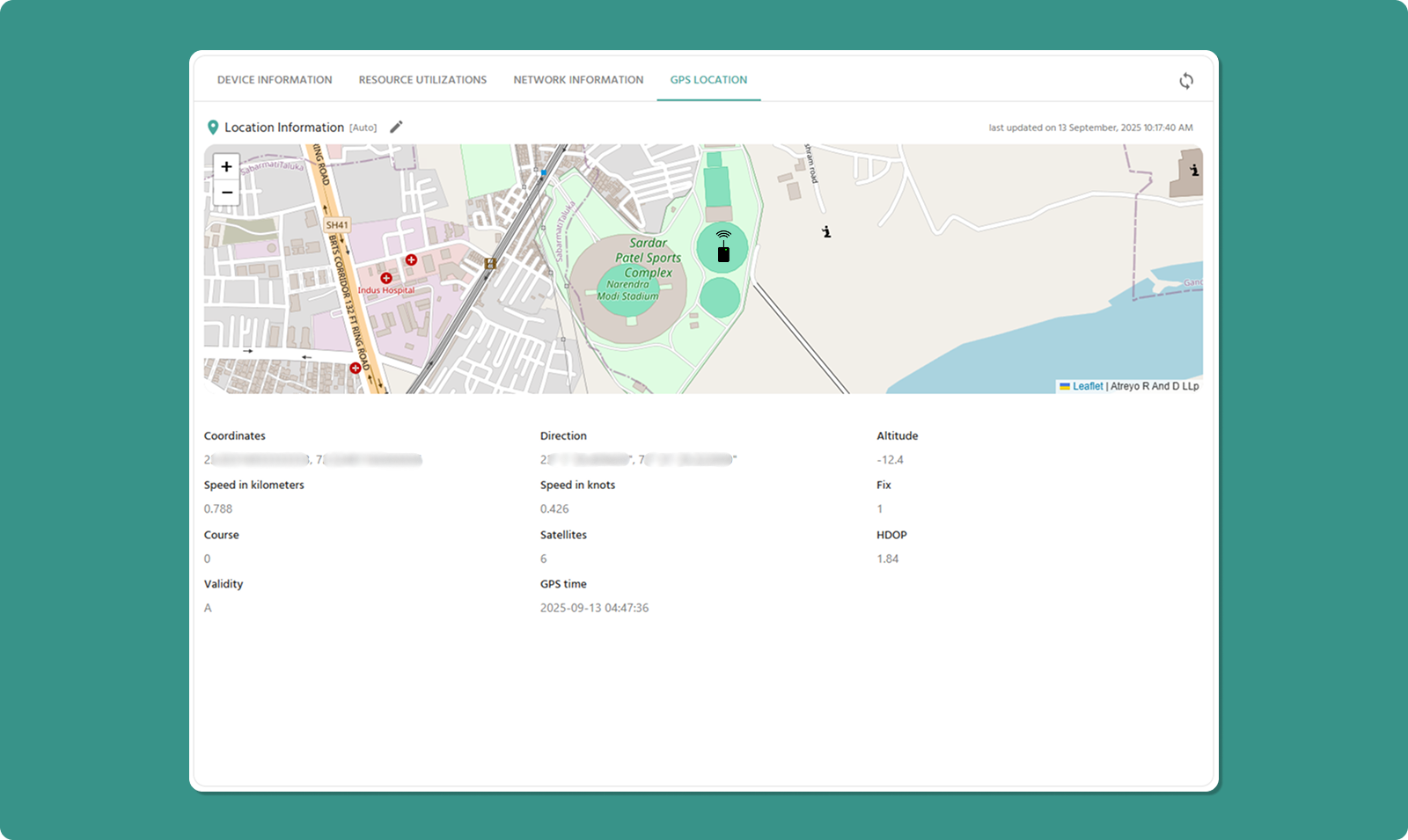

Tab 4: GPS Location

This tab manages device location tracking through automatic GPS data or manual coordinate entry.

Location Tracking Modes

The tab offers two mutually exclusive modes:

1. Auto Mode: Automatic GPS tracking

2. Manual Mode: User-defined coordinates

---

Option A: Auto Mode

Automatic location tracking using the device's internal GPS modem.

How It Works:

1. Device's cellular modem contains GPS receiver

2. Modem locks onto GPS satellites (requires 4+ satellites)

3. Location data calculated on device

4. Coordinates transmitted to Atra RMS

5. Map updates automatically

---

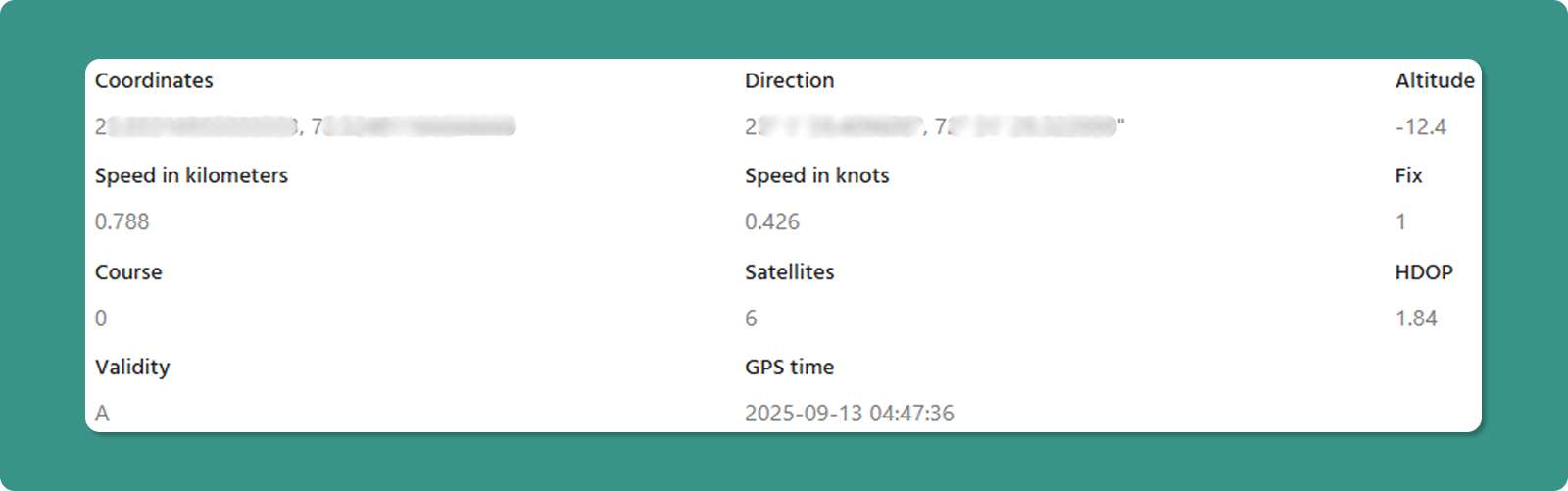

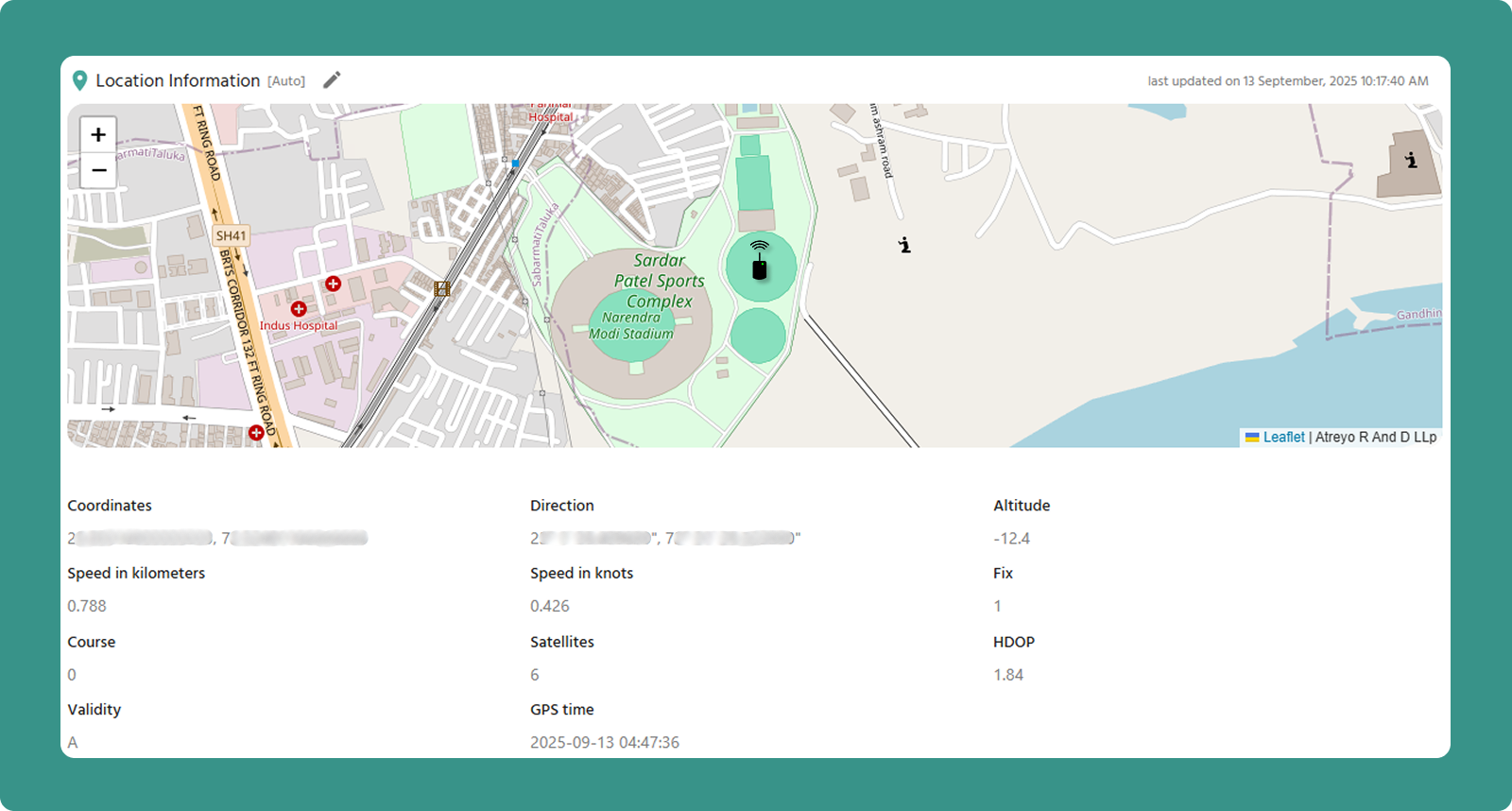

GPS Data Fields

When Auto mode is active and GPS has a fix, the following data is displayed:

---

Understanding GPS Accuracy

Satellites Count:

• 4+ satellites: Minimum for 3D fix (lat, lon, altitude)

• 3 satellites: 2D fix only (lat, lon, no altitude)

• 8-12 satellites: Optimal accuracy

• <3 satellites: No position fix possible

HDOP (Horizontal Dilution of Precision):

• Quality Indicator: Lower values = better accuracy

• Scale:

• 1.0-2.0: Excellent (typical accuracy: 1-3 meters)

• 2.0-5.0: Good (typical accuracy: 3-10 meters)

• 5.0-10.0: Moderate (typical accuracy: 10-30 meters)

• >10.0: Poor (accuracy degraded)

Validity Codes:

• 'A' (Active/Valid): GPS data is current and reliable

• 'V' (Void/Invalid): GPS data is stale or unreliable

---

GPS Troubleshooting

Problem: No GPS Fix

Common Causes:

• ❌ Device is indoors (GPS requires clear sky view)

• ❌ Device is in metal enclosure (blocks signals)

• ❌ GPS antenna not connected properly

• ❌ Location service disabled in device settings

Solutions:

1. Move Device: Place near window or outdoors temporarily

2. Check Antenna: Verify external GPS antenna connection

3. Wait: First fix can take 5-15 minutes ("cold start")

4. Verify Settings: Ensure GPS service is enabled

Problem: Poor Accuracy (High HDOP)

Solutions:

• Improve Sky View: Remove obstructions above device

• Wait: Accuracy improves as more satellites are acquired

• External Antenna: Use high-quality external GPS antenna

• Check Environment: Avoid placement near RF interference sources

---

Use Cases for Auto GPS Mode

Ideal Scenarios:

• ✅ Vehicle-mounted devices (fleet tracking)

• ✅ Mobile equipment monitoring

• ✅ Temporary installations requiring location verification

• ✅ Asset tracking applications

• ✅ Devices requiring location-based automation

Not Recommended:

• ❌ Stationary indoor installations

• ❌ Underground or heavily shielded locations

• ❌ Locations with poor GPS visibility

---

Option B: Manual Mode

User-defined static location coordinates.

How It Works:

1. User enters Latitude and Longitude manually

2. Coordinates stored in cloud only

3. Location displayed on Overview map

4. No data transmitted from device

---

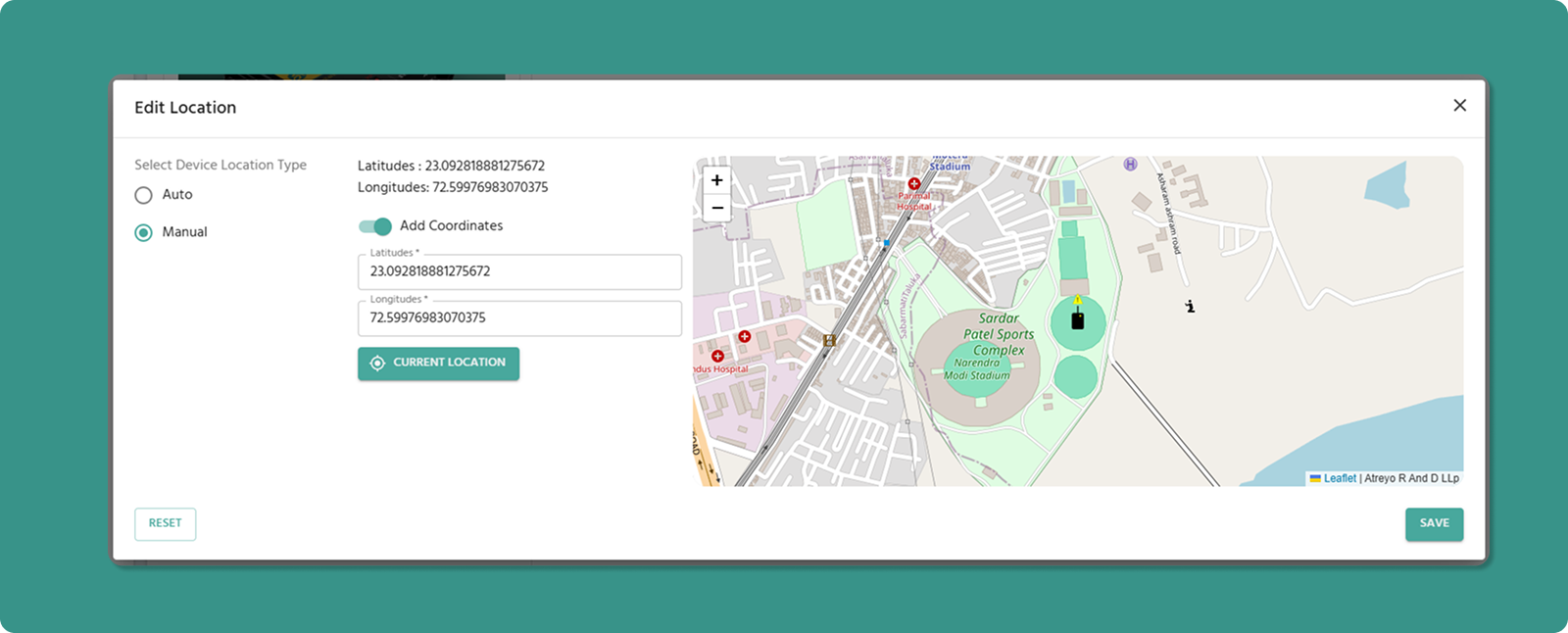

Manual Location Entry

Input Fields:

Latitude:

• Format: Decimal degrees

• Range: -90° to +90°

• North: Positive values

• South: Negative values

• Example: 23.0225 (23° N)

Longitude:

• Format: Decimal degrees

• Range: -180° to +180°

• East: Positive values

• West: Negative values

• Example: 72.5714 (72° E)

---

Finding Coordinates for Manual Entry

Method 1: Google Maps

1. Open Google Maps (maps.google.com)

2. Right-click on desired location

3. Click "What's here?"

4. Coordinates appear at bottom (click to copy)

5. Format: Latitude, Longitude (e.g., 23.0225, 72.5714)

Method 2: GPS Device/Phone

1. Use smartphone GPS app

2. Stand at device location

3. Record coordinates from app

4. Enter into Manual Location fields

Method 3: Physical Address Lookup

1. Use geocoding service (e.g., geocode.xyz)

2. Enter physical address

3. Service returns coordinates

4. Verify accuracy on map before using

---

Important Limitations of Manual Mode

⚠️ Critical Understanding:

Manual location data is stored ONLY in the cloud, NOT on the physical device.

Implications:

• Map Display: Device appears at manual location on Overview map

• Device Reality: Physical device has no knowledge of this location

• Mismatch Possible: Device may be physically elsewhere

⚠️ Use Manual Mode Only When:

• GPS is unavailable (indoor, underground, shielded locations)

• Device is stationary and location won't change

• Approximate location is sufficient for your needs

• You understand the location is for reference only

---

Use Cases for Manual Mode

Appropriate Scenarios:

• ✅ Fixed indoor installations (factories, server rooms)

• ✅ Underground installations (basements, tunnels)

• ✅ Devices in GPS-shielded enclosures

• ✅ Legacy devices without GPS capability

• ✅ Approximate location sufficient for inventory purposes

Not Recommended:

• ❌ Mobile devices requiring real-time tracking

• ❌ Situations requiring precise location verification

• ❌ Applications with location-based automation

• ❌ Compliance scenarios requiring actual device location

---
